R197 ECOPIA™

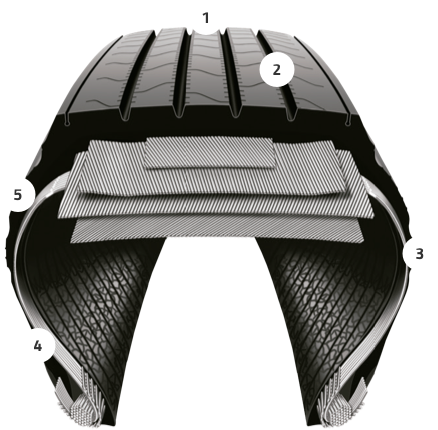

Specialized Features
- NanoPro-Tech™ Compound
- Patented NanoPro-Tech polymer technology limits energy loss for improved rolling resistance and optimum fuel effi ciency
- Shallow Tread Depth
- Fights tread squirm for lower rolling resistance. The 11/32" tread depth also combats irregular wear for long life
- Fuel Saver Sidewall
- Limits energy loss using a proprietary sidewall compound to help conserve fuel, both when new and retreaded
- IntelliShape™ Sidewall
- Contains less bead fi ller volume, reducing tire weight and minimizing rolling resistance for enhanced fuel effi ciency
- Tough Sidewall Protection
- Thick ribs on both sidewalls fi ght curbing damage to protect the casing
Bridgestone Ecopia
Specifications
Selection
Choose a Unit
Details
- Application
- Truckload, Less Than Truckload
- Article Number
- 323
- Tire Size
- 255/70R22.5
- Compound
- Ply/Star Rating
- 16
- Tread Depth (32nds) (mm)
- 11 9
- Load Range
- H
- Overall Width (in) (mm)
- 10.4 264
- Overall Diameter (in) (mm)
- 36.3 922
- Max. Tire Load Dual (lbs) (kg)
- 5070 2300
- Max. Speed (mph) (km/h)
- 75 121
- Meas. Rim (in) (mm)
- 8.25 210
- Overall Width Loaded (in) (mm)
- 11.5 292
- Static Loaded Radius (in) (mm)
- 16.9 429
- Max. Tire Load Single (lbs) (kg)
- 5510 2500
- Inflation Pressure (psi) (kPa)
- 120 830
- Revolutions Per (mile) (km)
- 572 355
